KD-8688

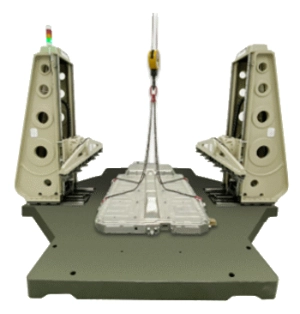

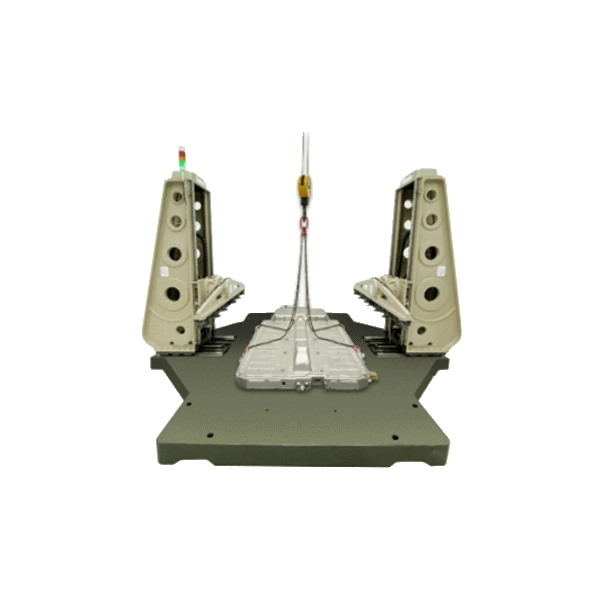

Automatic Huge Drop Tester
Description
WORLDWIDE
Product
Home > Product > Drop Tester
Drop Tester
Features
- Automatic drop testing, four column bases rise the specimen, the support arms clip the specimen from both sides, auto rise to test height and release for dropping.
- Auto micro balance adjusts the test specimen.
- To test huge specimen, weight up to 800 kg, dimension up to 1600mm width and 500mm deep. Extend no limitation for Huge dimension.
- Support arm can be micro adjusted the inclination angle for unbalance drop, corner / edge / face….etc.
- The base plate is cast made, high rigidity and no resonance structure.
| Item | Specification | Remark | |
|---|---|---|---|
| 1 | Min. Specimen width | 500mm | |
| 2 | Max. Specimen width | 1,500mm | >1,600mm |
| 3 | Max. Specimen Weight | 800kg | |
| 4 | Test Height | 150mm ~ 1,300mm | >100 |
| 5 | Angle of inclination for drop testing | +6.4∘~ －7.2∘ | |
| 6 | Machine Outside Dimension | 2,200L x 2,050D x 2,250H mm | |
| 7 | Machine Weight | 2,000 kg | |
| 8 | Console Dimension | 600L x 500D x 1,060H mm | |
| 9 | Console Weight | 75kg | |
| 10 | Power requirement | AC 220V / 25A – 3Phase | |
| 11 | Pneumatic requirement | 5 ~ 7kg/cm2 |
